Trik: Apabila Gagal Update FW "Secured updated not possible"

Postby admin » July 28th, 2010, 1:05 am

Tutorial : Gagal Update FW "Secured updated not possible"

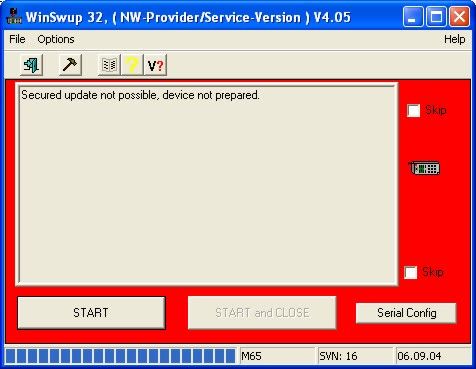

Jika dalam update firmware dg winswup muncul sperti ini :


merujuk ke problem yg pernah di alami oleh Mas Herry Potter dalam update FW (Firmware) M65 di viewtopic.php?f=49&t=750

> factor yg mempengaruhi : Hash FFFF (cek dg aplikasi java getcode) dan FFS Corupt


Maka scara lebih umum pada Siemens varian X65 dan X75 maka tutorial sbgai berikut :
(Thanks to Mas Herry Potter)

Finally I can update my M65 Rescue to firmware ver.16 with WinSwup smoothly.
Thanks to Sotaland for your friendly support. The steps are quite long and tired.
Thanks also to siemens-xp member who gave me advise and support.
I update from 12 ---> 16 ---> 44 ---> 50 successfully.
Here are my steps and first time I use "Format FFS" tab. Very dangerous in fact.
You can try this...but in your own risk!!!

1. Phone in off condition.
2. Connect to PC with DCA-510
3. Run PapuaUtils 1.1.1b by Alex
4. Open Settings tab and click on “Service Mode”
5. Short press red button
6. Go to Various tab and click on “Read IMEI”
7. Click on “Freeze” and error happened “In this mode Feeze not possible”
8. Switch off phone
9. Switch on phone
10. Go to Codes tab and click on “Read code” (ESN and HASH will fill in automatically)
11. Fill SKEY field with 12345678
12. Click on “Calculate HASH and BootKEY from ESN + SKEY”
13. Switch off phone
14. Go to Flash tab and put check-mark on :
- In Flash
- In Bcore
- 76, 5008, 5009, 5077
- Master codes
15. Click on “Do the Job”
16. Short press red button
17. Go to Settings tab and click on “Service Mode”
18. Shortpress red button
19. Go to Various tab, click on “Read IMEI”
20. Click on “Freeze”
21. “In this mode Feeze not possible”
22. Open FFS Format tab
23. Click on “BCORE”
24. Click on “Yes”
25. Click again on “Yes”
26. Wait…

27. Push red button to switch off phone
28. Push red button and wait 2 – 5 minutes (Nothing happened on the phone. Just wait!!!)
29. Go to “Flash” tab and put check-mark only on “New BCORE”
30. Click on “Do the Job”
31. Short press red button to auto ignition
32. Then in “Flash” tab, put check mark only on :
- In Flash
- In Bcore
- 76, 5008, 5009, 5077
- Master codes
33. Click on “Do the Job”
34. Go to “Settings” tab and click on “Service Mode”
35. Short press red button to auto ignition
36. Go to “Various” tab (make sure IMEI is filled, if not click on “Read IMEI”)
37. Click on “Freeze” ---> Freeze (5) : It is executed
38. Switch off phone
39. Switch on phone
40. Switch off phone

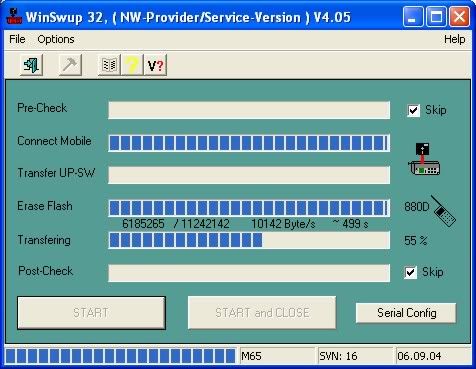

41. Run WinSwup
42. Put check-mark on “Pre-Check” and “Post-Check”
43. Click “Start” and short press red button

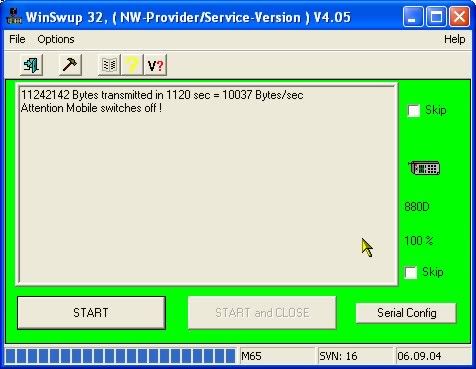

44. Voila…WinSwup works fine….wait until finish.

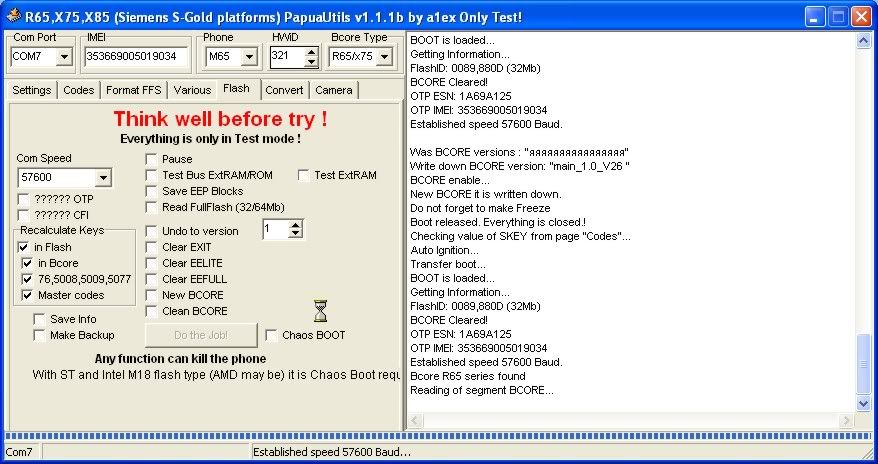

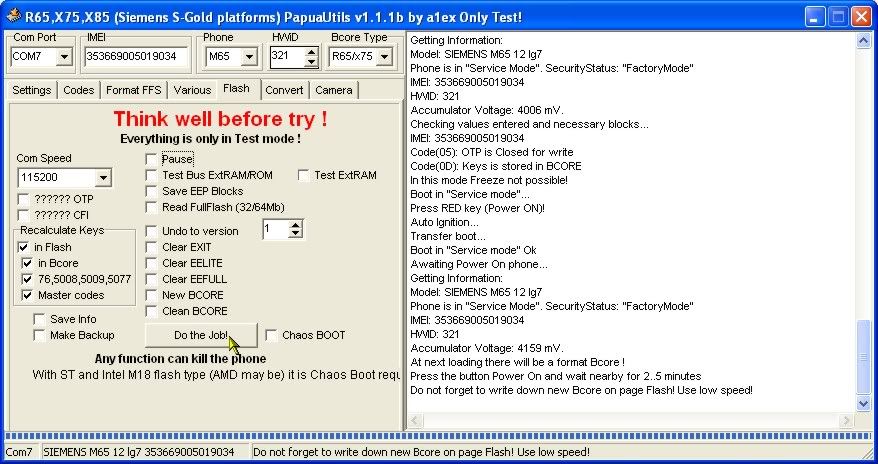

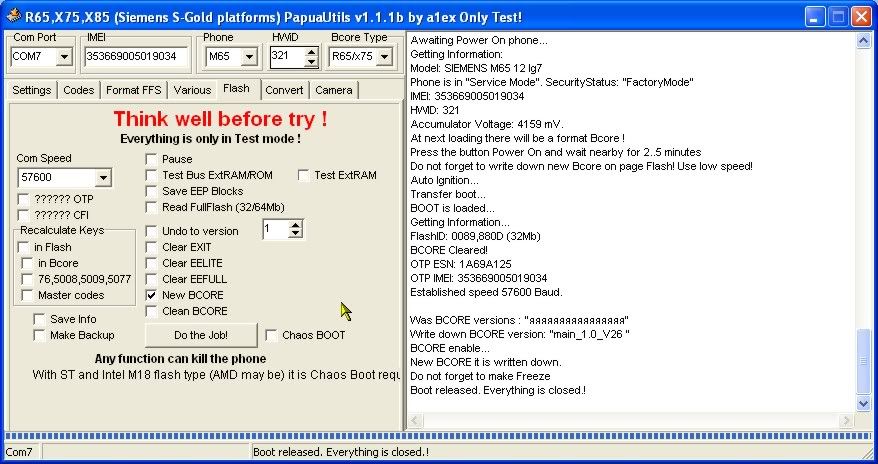

Here are some log of PapuaUtils.
